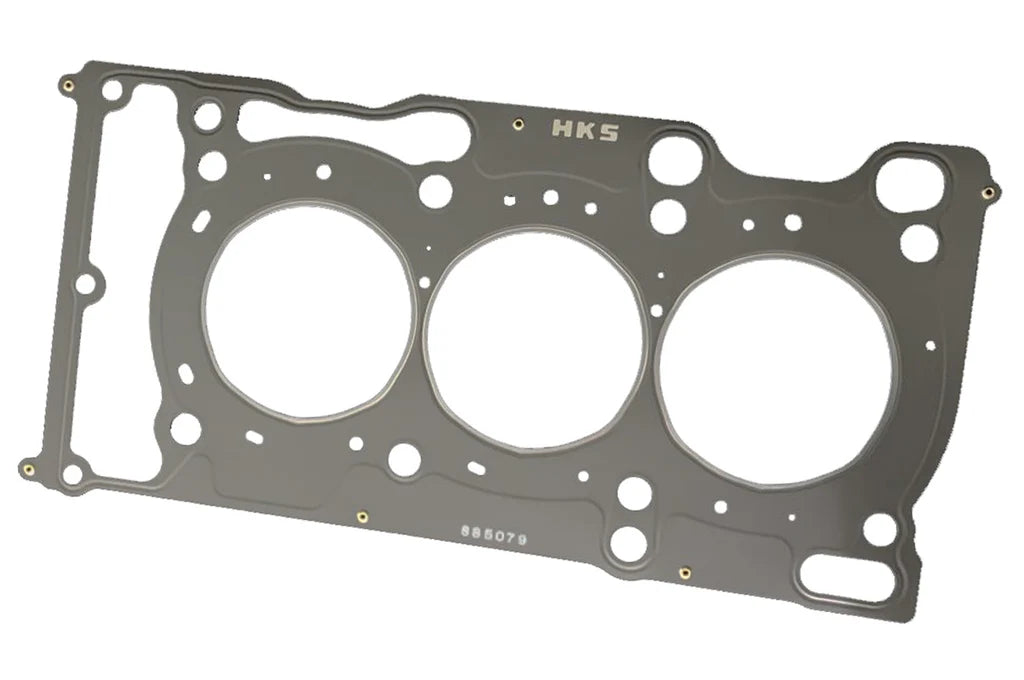

2023+ Toyota GR Corolla, G16E-GTS, Performance Head Gasket, Grommet Style, 0.8mm, 89mm Bore, HKS, 23002-AT003
It is a grommet-type gasket that can be used even if the boost is further increased with G16E-GTS for GR YARIS with high combustion pressure. GROMMET TYPE HEAD GASKET (t=0.8) for GR YARIS/G16E-GTS
- It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
- It put the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head.
Engine | Thickness(mm) | Compression Ratio | Bore | Code No. | Manual | Remarks |
---|---|---|---|---|---|---|
G16E-GTS | 0.8 | ε=10.6 | Dia. 89 (not round) | 23002-AT003 | Stock thickness t=0.85 |
