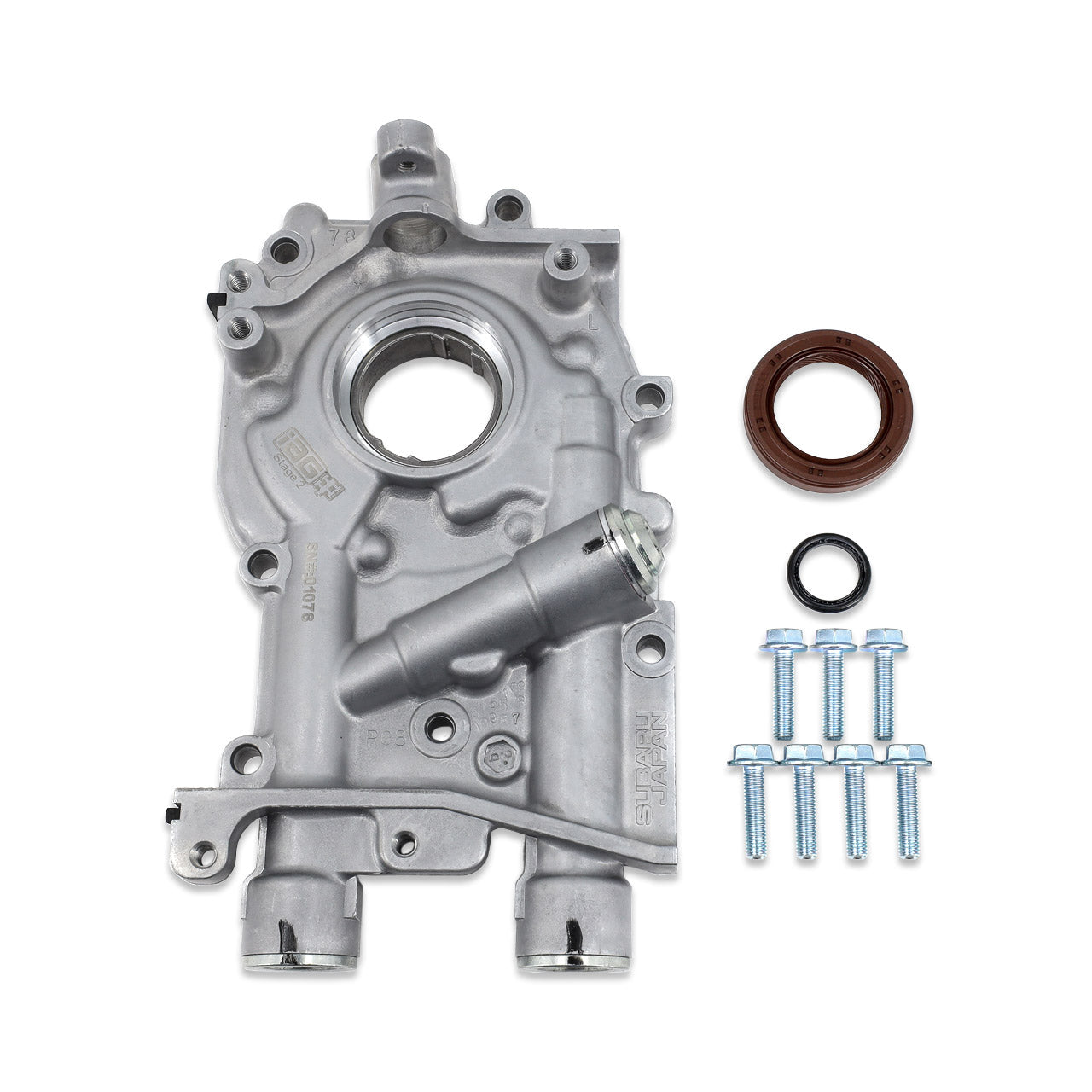

IAG Performance Stage 2 EJ25 11mm Oil Pump For 04-21 STI 06-14 WRX 05-09 LGT 04-13 FXT

Each IAG Stage 2 oil pump starts life as an OEM spec 11mm oil pump, straight from Subaru. IAG completely disassembles the new oil pump including pulling the rotors, backing plate & pressure relief valve. Next, the main body is fixtured in our in-house 5-Axis Centroid CNC machine where the inlet and outlet passageways are CNC ported. This allows for a larger, more consistent pathway for the oil into and out of the gerotor internals and helps to prevent cavitation. The Oil Pump Outlet where it meets the engine block is also CNC “Port Matched”, for a perfect transition into the engine block. The Inlet and Outlet sides of the gerotor are also opened up on the CNC mill to reduce inlet side cavitation, and to reduce outlet side pressure drops. The pressure relief valve piston is REM Polished, which provides a non-directional, low Ra, polished finish. This reduces friction, heat and possibility of the relief valve piston galling and sticking, a common failure point on the OEM pumps. The piston is reinstalled and confirmed to operate correctly. The rotors are measured and checked to be within the manufacturer's specification - aka Blueprinted, and installed next. The pump is then put together with a light coating of assembly lube to reduce friction and scuffing and aid in priming on first start up. Finally, the backing plate is installed. Loctite is added to the hardware, and each piece receives a painted mark after it is correctly torqued. The pump ships ready to install, with all hardware and seals required for installation.

• Intended for Stock Engines or Stage 1 IAG Engines.
• Shimmed and REM Polished Pressure Relief Valve to Increase Oil Pressure
• Blueprinted and Assembled, Ships Ready to Install
• 11mm Oil Pump Rotors
• CNC Ported to Maximize Flow and Pressure
